The Settings form allows the configuration of ObjectPrint settings. To edit the ObjectPrint settings, click on the Settings in the Navigator Pane.

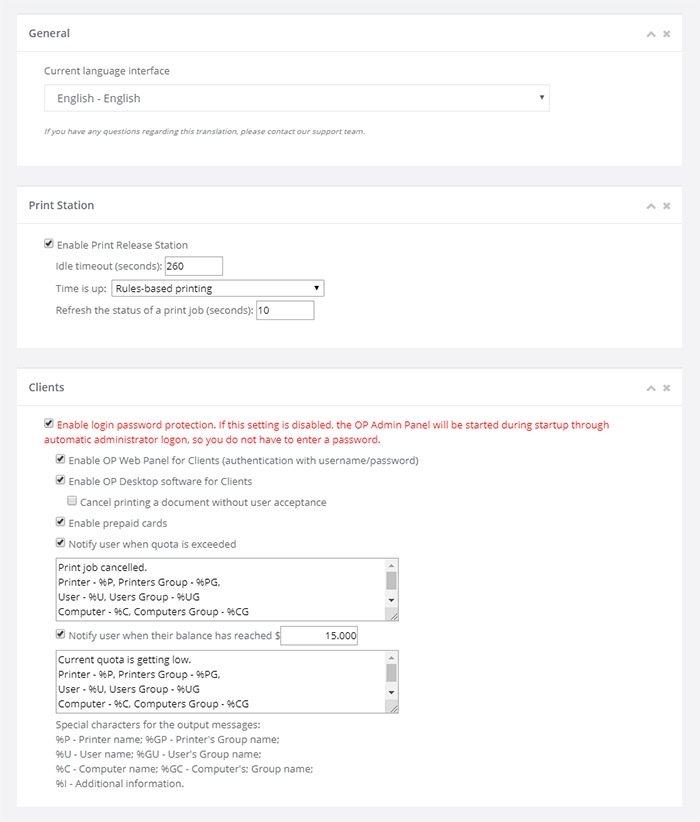

General Tab


ObjectPrint is designed to add an extra level of protection to your ObjectPrint’s administrator back-end, asking for a username and password before accessing the administrator login page. You can remove your ObjectPrint password as long as you are the only person with access to ObjectPrint. Removing your password will allow you to completely bypass the logon process. Note: Disabling password prompts might be a security risk.

Multi-language Support (experimental). ObjectPrint supports numerous languages to increase its ease of use. The languages supported include: English, Chinese (Simplified), Chinese (Traditional), Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian and Spanish. ObjectPrint will auto-detect the language used by the operating system. The default interface is set to English.

The ObjectPrint Clients provide additional features that may be of use to users (display the user's account balance, print log and prepaid cards).

ObjectPrint includes notifications to alert users about printing information:
• If a quota is exceeded for a user/printer/computer/group
• If an account balance drops below that set for a user/printer/computer/group
The message sent to the user can be customized using personal information
Please make sure that the Messenger service or ObjectPrint Desktop Client of the print client is running. Otherwise, the user will not receive the notification message.

By default, each paper size has its own cost. If a program does not know the size of the paper (especially for network printers), then it applies the cost of printing by default.

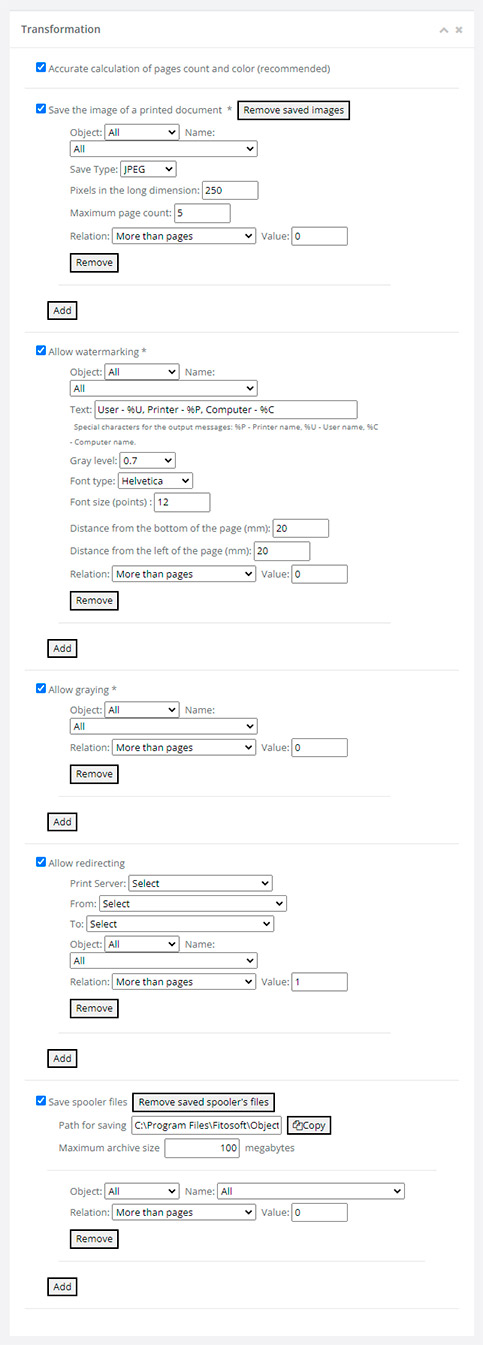

All print jobs can be saved and viewed later as an image. Print jobs may have also have a preview image available. When printing a document it will be saved as an image. You have the option to save the file as a JPEG, GIF, PNG or TIFF.

You can define your own logo image and custom link in ObjectPrint Web Admin Panel. Click the Settings -> General tab in ObjectPrint Web Admin and locate the ‘Logo Image Settings’ field. In the field use the ‘Upload File’ button to upload your logo image. To add a custom link enter URL in the ‘Link’ text field.

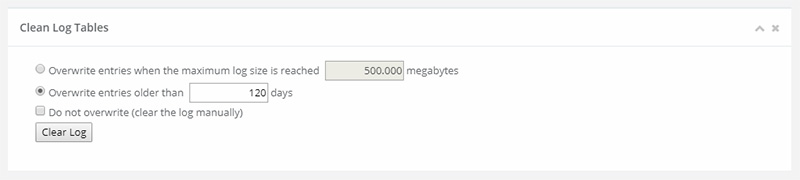

The default logging policy is used to overwrite logs as required, providing that the size of events is at least 500MB. This policy can be customized for different logs. The log entry options include:
• Overwrite events as required
• Overwrite events older than X days
• Do not overwrite events (clear the log manually)

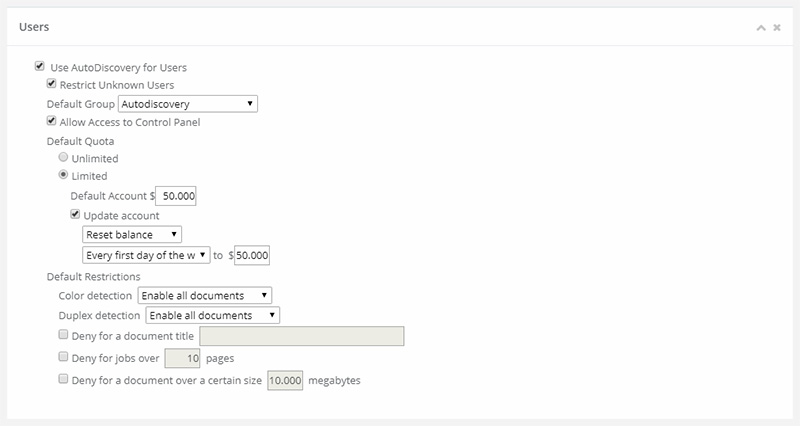

Default User Tab (Default Printer/Computer are equal)

ObjectPrint can apply many settings on a per user basis, but it also offers a default user setting to allow the simple specification of certain settings applicable to many users. The default user settings include Default Quota and Default Restrictions. ObjectPrinter provides a feature for detecting unknown users who can then be easily added to a list of users with default settings.



ObjectPrint lets you choose a report in the following formats: Flash, Html.

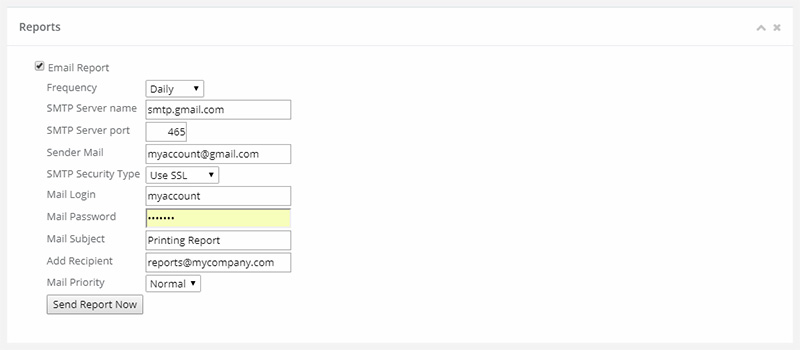

You can schedule a report of printer usage to be sent via email on one of the following schedules:
• Once ('Send Report Now' button)
• Daily (sent each morning)
• Weekly (sent first day of the week)
• Monthly (sent first day of the month)

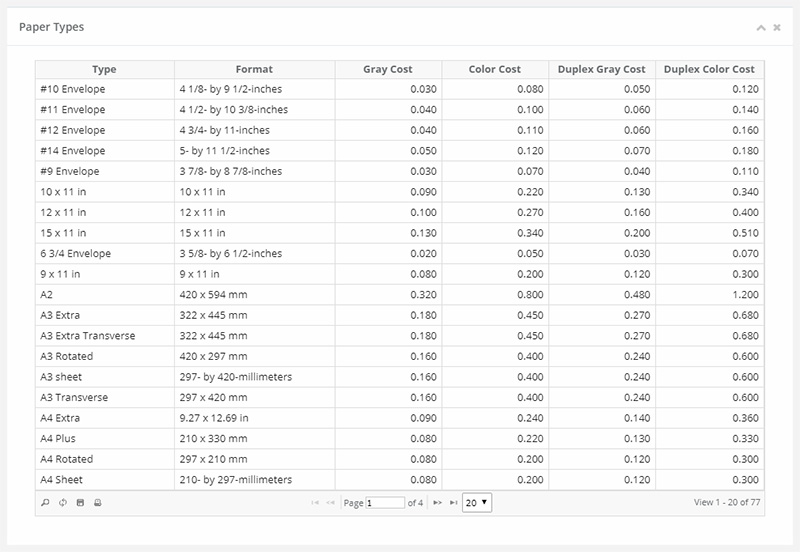

Default Paper Types Cost Tab

Using the Default Paper Types Cost Tab, a default cost per page can be assigned to the printers. This setting can be changed at a later date on a per printer basis.

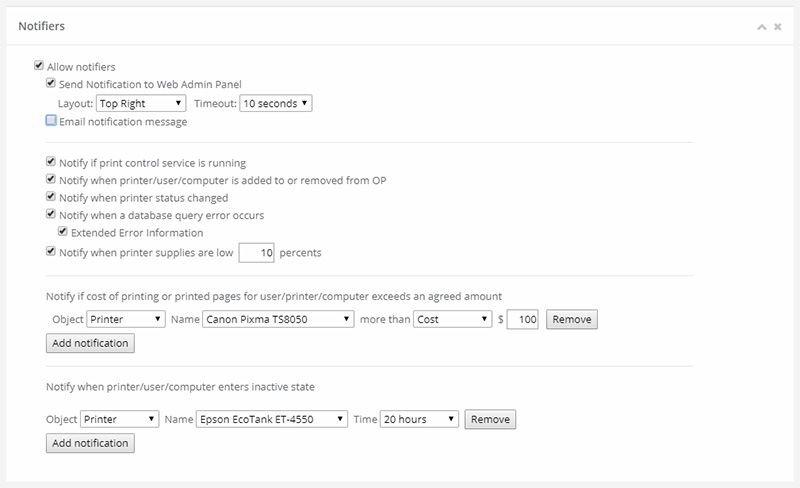

Notifier will enable administrators to receive message notifications from ObjectPrint.
Notifier displays notifications on the Admin Panel or sends an email notification when:
• Print control service is running
• Printer/user/computer added or removed
• Printer status changed
• Database query error occurred
• Printer supplies are low
• Cost of printing or printed pages for a user/printer/computer exceeds an agreed amount
• Printer/user/computer enters inactive state

You will always be alerted automatically when a new message arrives.


About Tab

ObjectPrint Update can be used to schedule automatic update checks. By default, it is set to automatically check every week. Alternatively, scheduled checks can be switched off.
